HS-76 v13

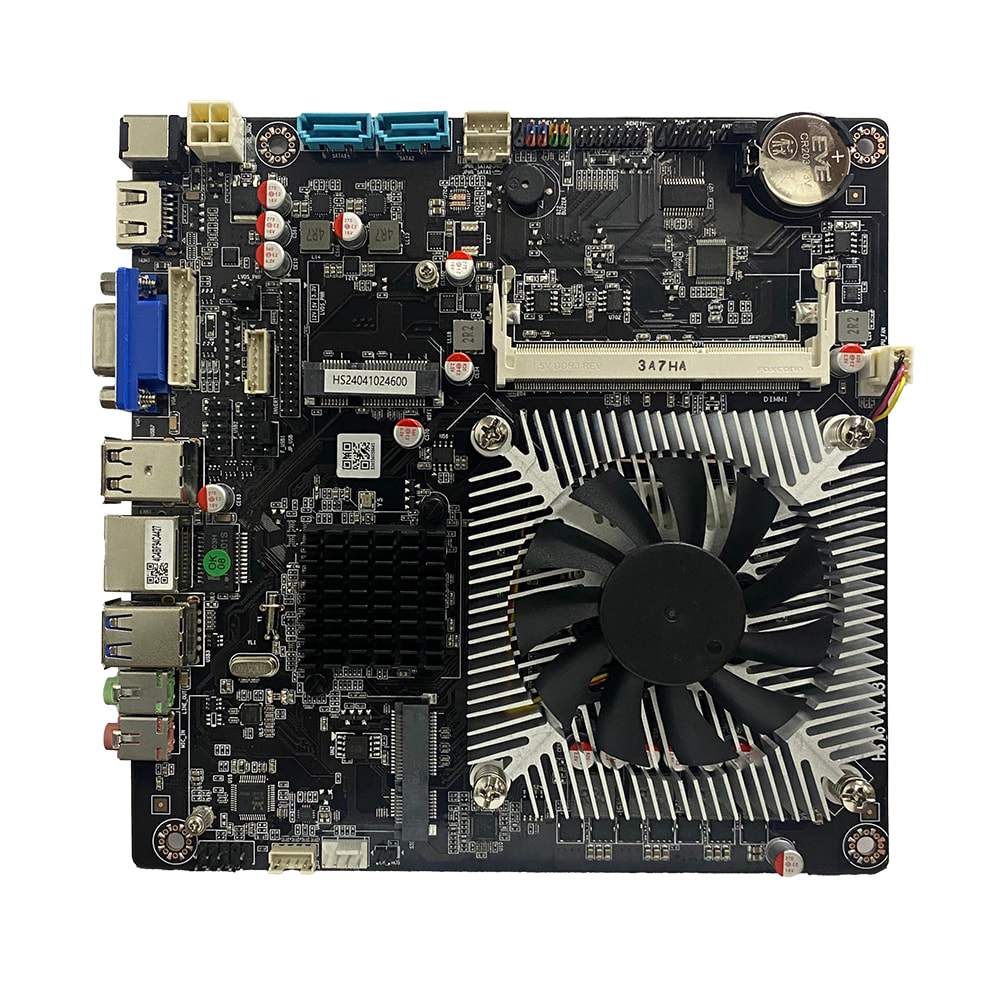

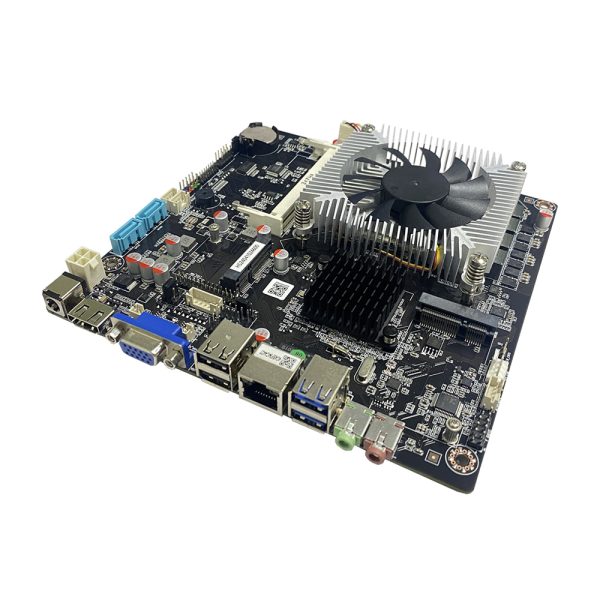

2nd to 3rd generation Core mobile processor Mini-ITX motherboard

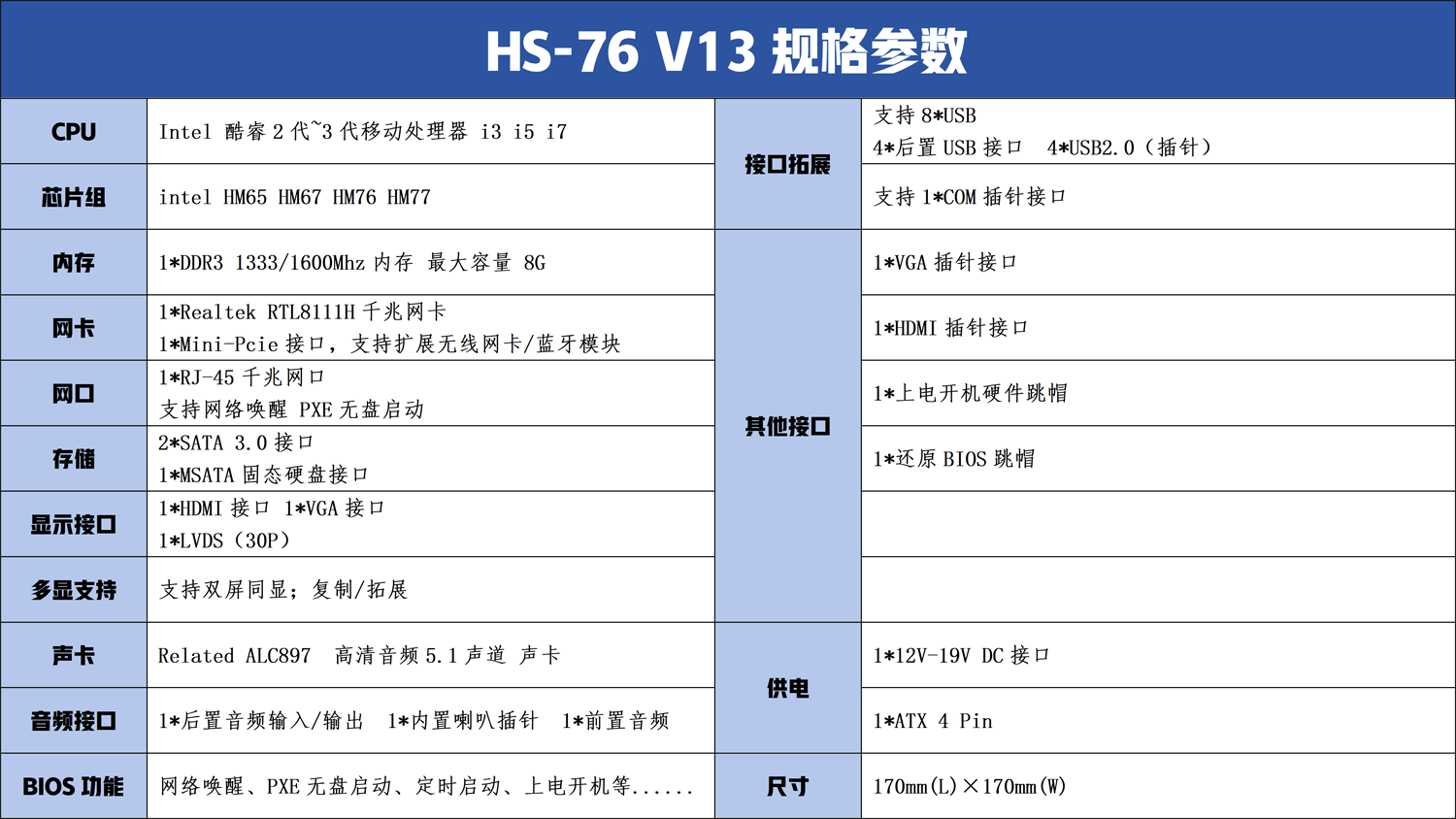

Detailed introduction
- HM65/67/76/77 chipset
- Supports 2nd-3rd generation Core I3/I5/I7 mobile processors
- 1 DDR3 memory slot, frequency 1333/1600Mhz, maximum support 8GB

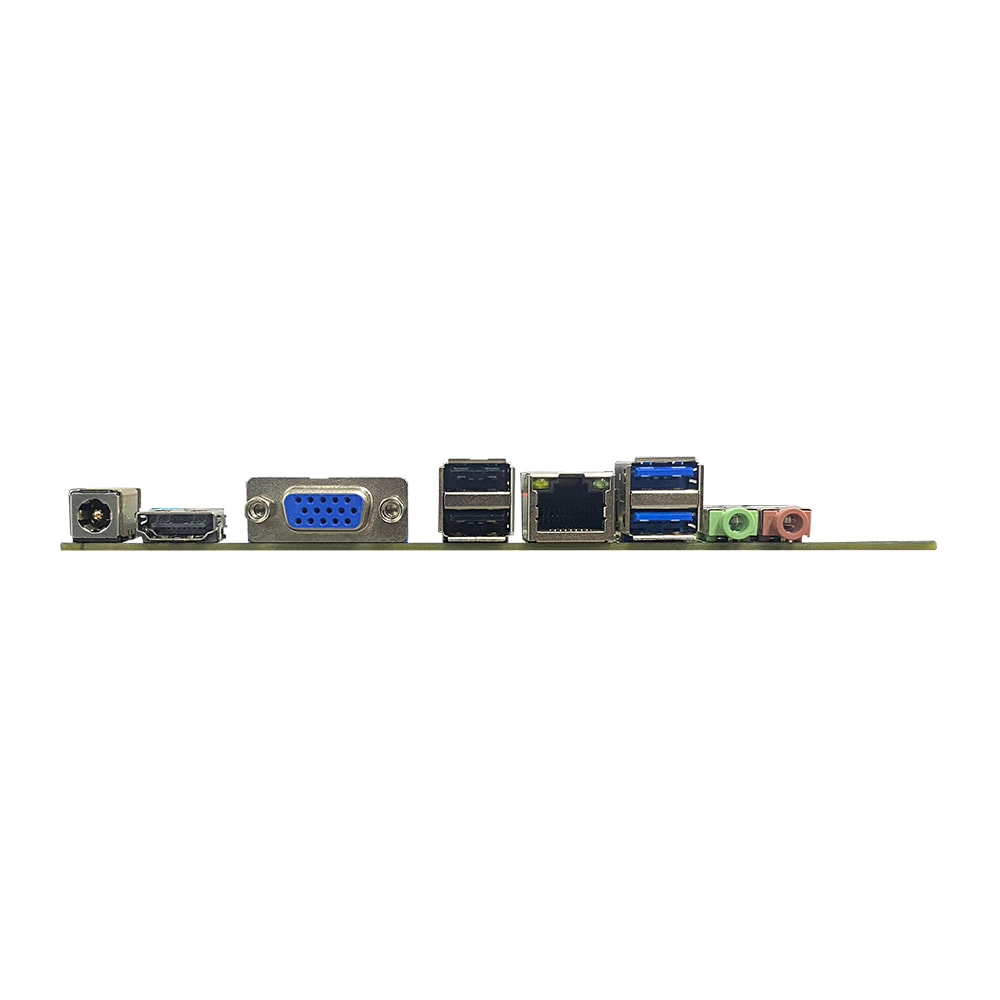

- Built-in LVDS pin HDMI pin interface VGA pin interface
- 8 USB interfaces 1 RS232 Com port
- 1个千兆网卡 提供1个Mini PcIe接口 支持拓展WIFI+Bluetooth
- 1 MSATA hard drive interface 2 SATA hard drive interfaces
