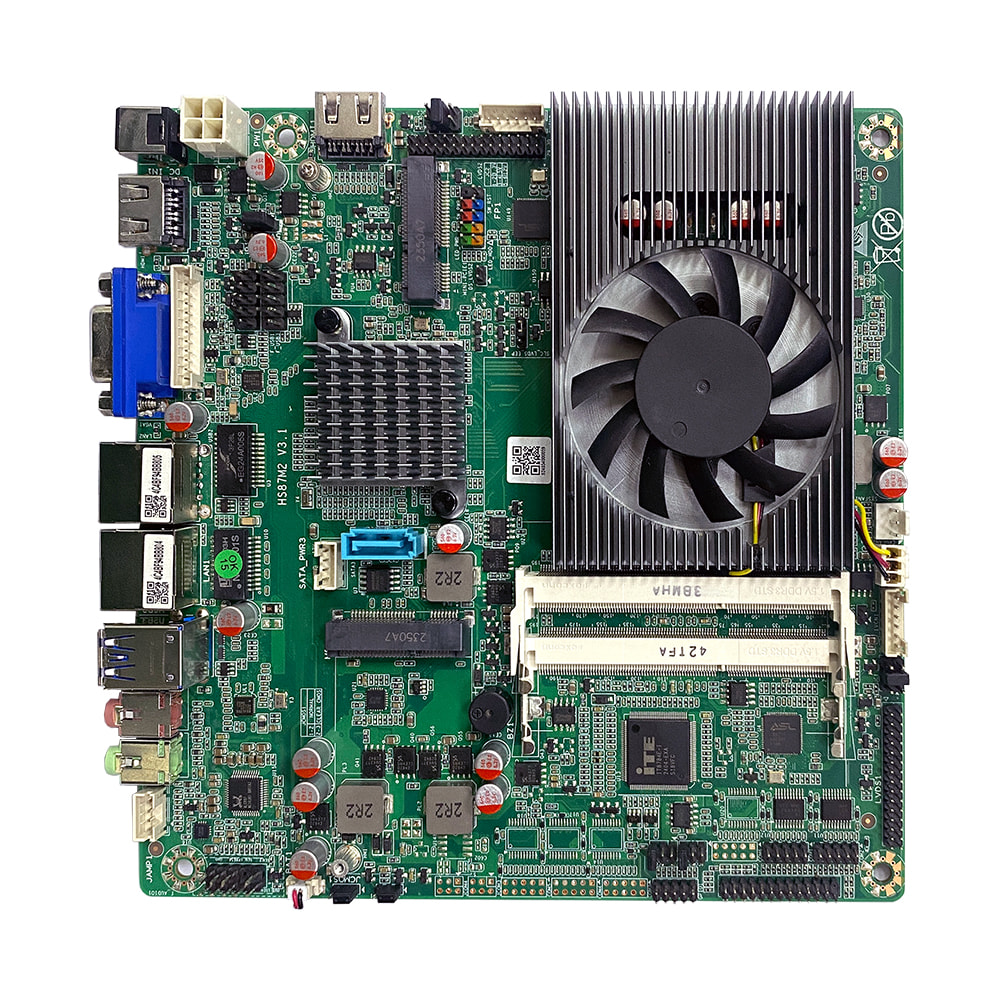

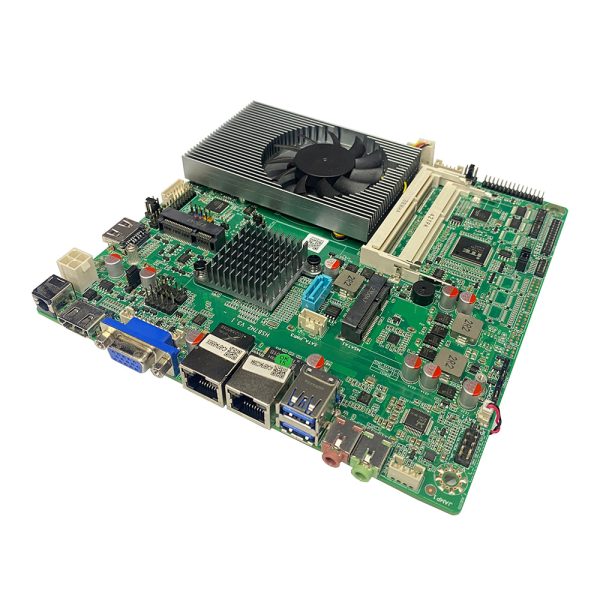

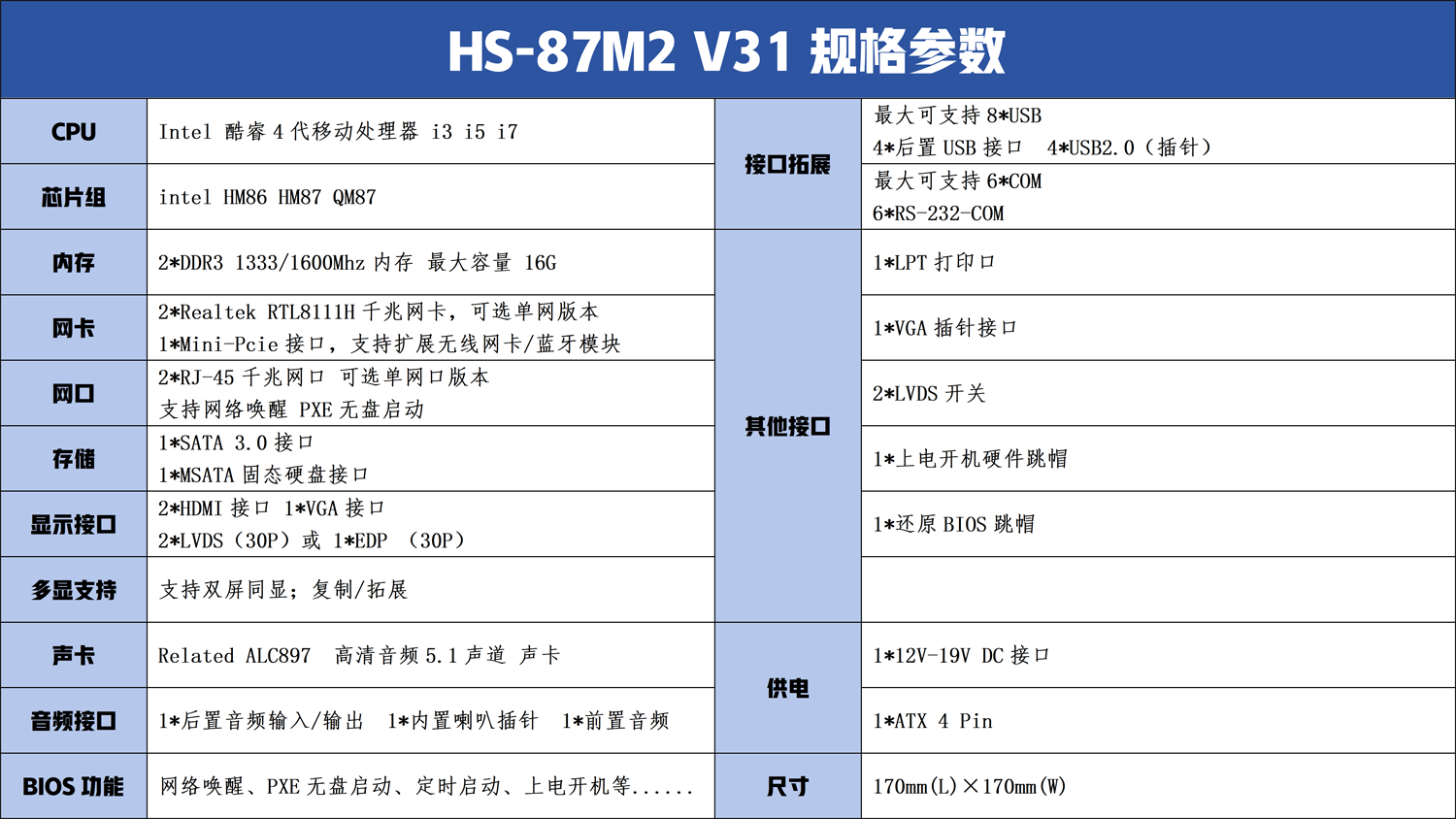

HS-87M2V31

4代酷睿移动端处理器Mini-ITX主板

HM86 HM87 QM87 chipset
Supports 4th generation Core I3/I5/I7 mobile processors
2 DDR3 memory slots, frequency 1333/1600Mhz, maximum support 16GB
Built-in display pin 2*LVDS 1*VGA pin interface

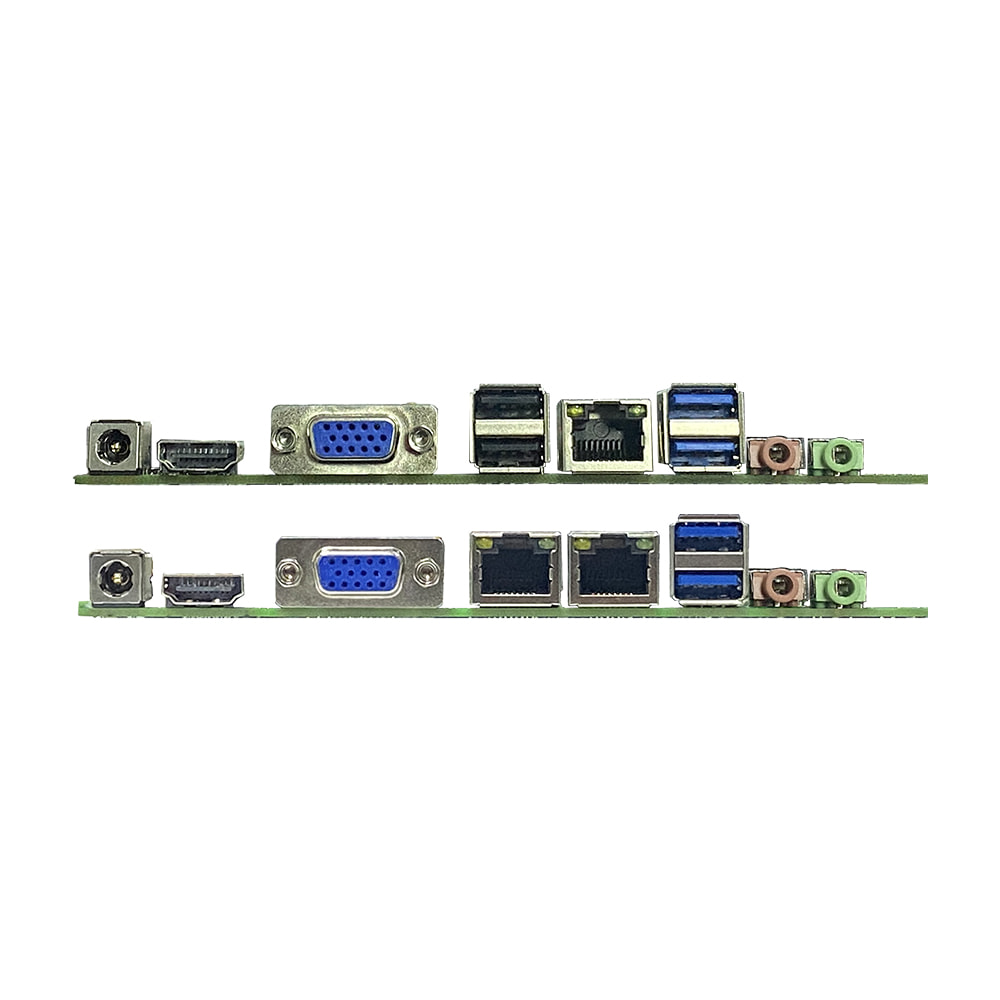

6 USB interfaces (8 USB optional) 6 RS232 Com ports
2 Gigabit network cards (optional single network) Provide 1 Mini PCIe interface to support expansion of WIFI+Bluetooth
1 MSATA hard drive interface 1 SATA hard drive interface
